Product Description:

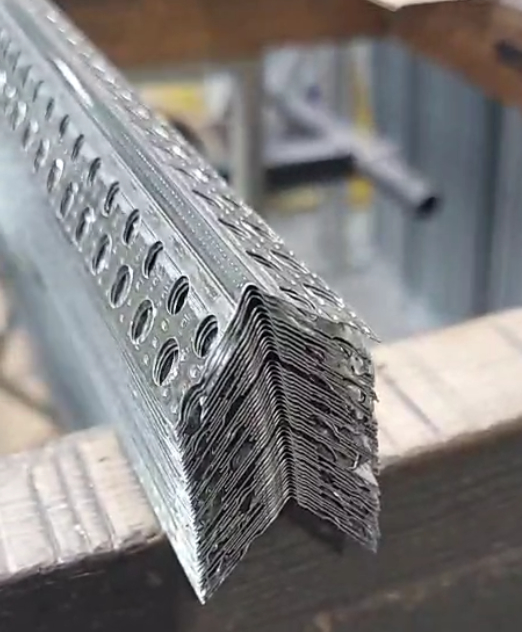

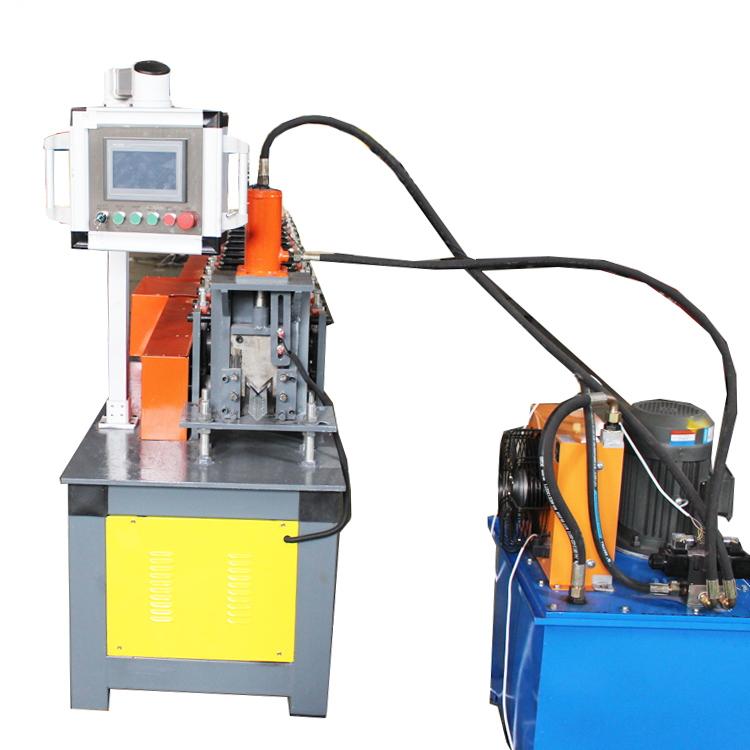

Fast Speed Light Steel L Wall Angle Corner Bead Roll Forming Machine
Fast Speed Light Steel L Wall Angle Corner bead roll forming machine. Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction work.This is Automatic Portable Steel Stud And Track Roll Forming Machine , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .
Features:
- Product Name: Stud And Track Roll Forming Machine

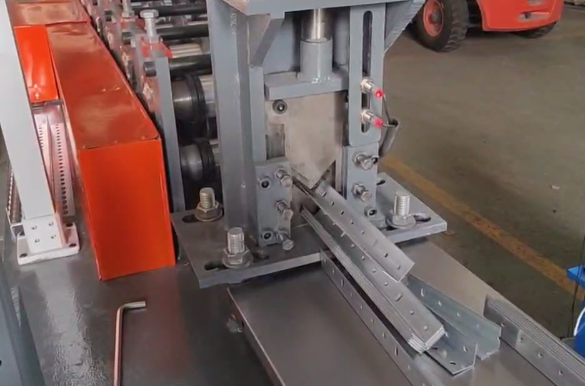

- Cutting Type: Hydraulic Cutting
- Control System: PLC
- Forming Speed: 10-15m/min
- Weight: 2.2T
- Specialize in producing angle Steel
Technical Parameters:
| Parameter |
Value |
| Material |
GI |
| Transmission |
1.0 Chain |
| Control System |
PLC |
| Warranty |
1 year |
| Cutting Tolerance |
±2mm |
| Cutting Type |
Hydraulic Cutting |
| Voltage |
380V/50Hz/3Phase |
| Forming Speed |
10-15m/min |
| Shaft Diameter |
70mm |
| Weight |
2.2T |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 35 days after the down payment is received.
FAQ:
Q: What is the Brand Name of Stud And Track Roll Forming Machine?
A: The Brand Name of Stud And Track Roll Forming Machine is FMS.
Q: What is the Model Number of Stud And Track Roll Forming Machine?
A: The Model Number of Stud And Track Roll Forming Machine is FMS-stud&track.
Q: Where is Stud And Track Roll Forming Machine made?
A: Stud And Track Roll Forming Machine is made in China.
Q: What is the size of Stud And Track Roll Forming Machine?
A: The size of Stud And Track Roll Forming Machine depends on your requirements.
Q: What is the power of Stud And Track Roll Forming Machine?
A: The power of Stud And Track Roll Forming Machine depends on your requirements.
