Name: EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Macchina per la formazione di panelli sandwich
Price: 40,500.00 USD
Availability: InStock

Casa. > prodotti > Macchina per la formazione di panelli sandwich >

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

Luogo di origine:

Cina

Marca:

FMS

Certificazione:

Numero di modello:

Macchina per la formazione di panelli sandwich

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Diametro dell'albero:

70 mm o come requisito

Materiale degli alberi:

Acciaio forgiato di alta qualità 45#

Lama da taglio:

Acciaio della muffa CR12 con il trattamento estiguuto

Velocità di formazione:

8-15 m/min

Materiale della lama da taglio:

Cr12MOV, trattamento termico

Alimentazione elettrica:

380 V, trifase, 50 Hz

Materiale dell'albero:

Acciaio di alto grado 45#, diametro 70mm

Spessore:

0,3-0,8 mm

Formare passaggi:

11 stazione

Energia:

5,5 kW

Larghezza materiale:

1200 mm

Evidenziare:

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

Termini di pagamento e di spedizione

Quantità di ordine minimo

1SET

Prezzo

negotiable

Imballaggi particolari

Nudo con il film plastico.

Tempi di consegna

45 giorni del worl

Termini di pagamento

T/T, L/C

Capacità di alimentazione

20 set al mese

Prodotti correlati

Video

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Ottieni il miglior prezzo

Video

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Ottieni il miglior prezzo

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Ottieni il miglior prezzo

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

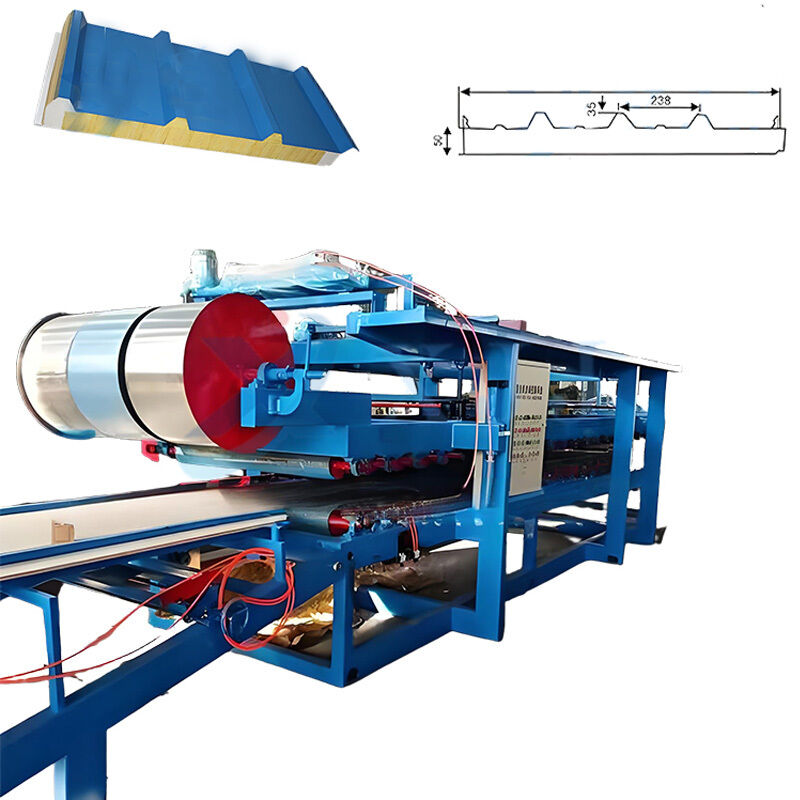

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

The Sandwich Panel Roll Forming Machine Production Line is specialized equipment designed for manufacturing EPS rock wool composite boards. These composite boards are widely used as building insulation materials for walls, roofs, and floors, providing excellent thermal insulation properties.

Main Functions

EPS board processing: cutting and trimming operations
Rock wool processing: cutting and precise paving
Composite bonding: hot pressing or cold pressing to bond EPS board and rock wool
Final molding: forming composite boards to meet required specifications

Equipment Composition

EPS board processing unit: handles cutting and trimming of EPS boards
Rock wool processing unit: manages cutting and paving of rock wool
Composite unit: bonds EPS board and rock wool together
Molding unit: ensures composite boards meet dimensional specifications
Control system: automated control of the entire production process

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Main Motor Power	7.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).

Repairs will not be performed during the guarantee period in the following circumstances:

Damage occurs due to natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to movement or shipment after installation

Payment Terms

40% in advance as down payment
60% paid before shipment processing

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 65 days after down payment receipt

Frequently Asked Questions

Does one machine produce only one style panel profile?

Not exactly. For wider and double layer making machines, they can produce more than 6 different types of panels.

What support do you provide if the machine breaks down?

Our machines include a 12-month warranty period. If broken parts cannot be repaired, we will send replacement parts (customer pays express costs). After warranty period, we provide technical support for the equipment's entire lifespan through negotiated solutions.

Can you handle transportation?

Yes, please provide your destination port or address. We have extensive experience in transportation logistics.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide custom solutions?

Yes, we can design machines according to your specific requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide recorded testing videos for your reference, or we welcome you to visit our factory and test the machine personally.
