Name: Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Macchina per la formazione di panelli sandwich
Price: 40,500.00 USD
Availability: InStock

Casa. > prodotti > Macchina per la formazione di panelli sandwich >

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Luogo di origine:

Cina

Marca:

FMS

Certificazione:

Numero di modello:

Macchina per la formazione di panelli sandwich

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Diametro dell'albero:

70 mm o come requisito

Materiale degli alberi:

Acciaio forgiato di alta qualità 45#

Lama da taglio:

Acciaio della muffa CR12 con il trattamento estiguuto

Velocità di formazione:

5-8 m/min

Materiale della lama da taglio:

Cr12MOV, trattamento termico

Alimentazione elettrica:

380 V, trifase, 50 Hz

Materiale dell'albero:

Acciaio di alto grado 45#, diametro 70mm

Spessore:

0,3-0,8 mm

Formare passaggi:

11 stazione

Energia:

5,5 kW

Larghezza materiale:

1200 mm

Evidenziare:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Termini di pagamento e di spedizione

Quantità di ordine minimo

1SET

Prezzo

negotiable

Imballaggi particolari

Nudo con il film plastico.

Tempi di consegna

45 giorni del worl

Termini di pagamento

T/T, L/C

Capacità di alimentazione

20 set al mese

Prodotti correlati

Video

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Ottieni il miglior prezzo

Video

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Ottieni il miglior prezzo

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Ottieni il miglior prezzo

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

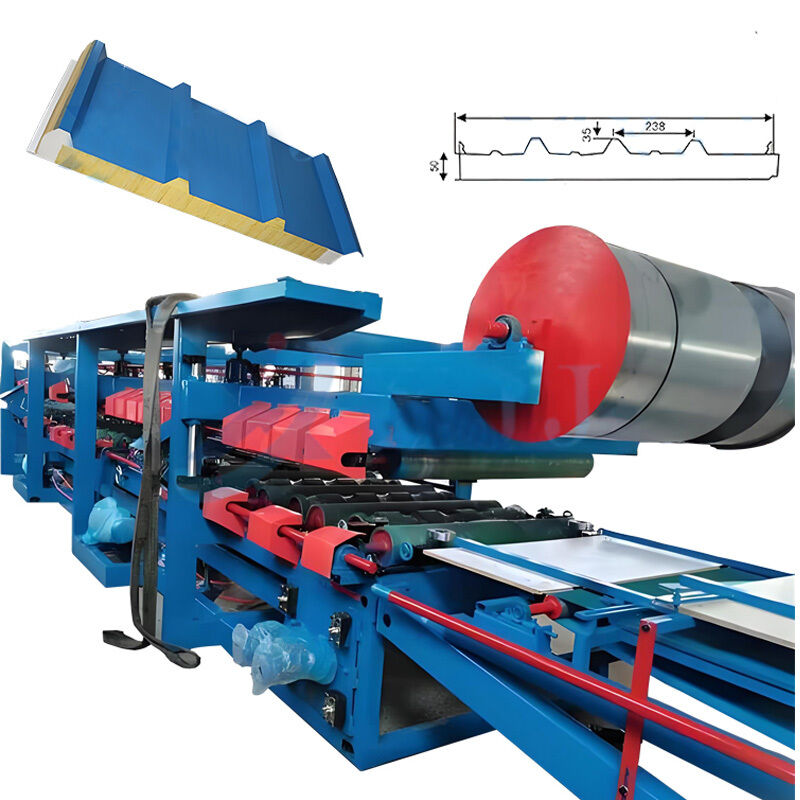

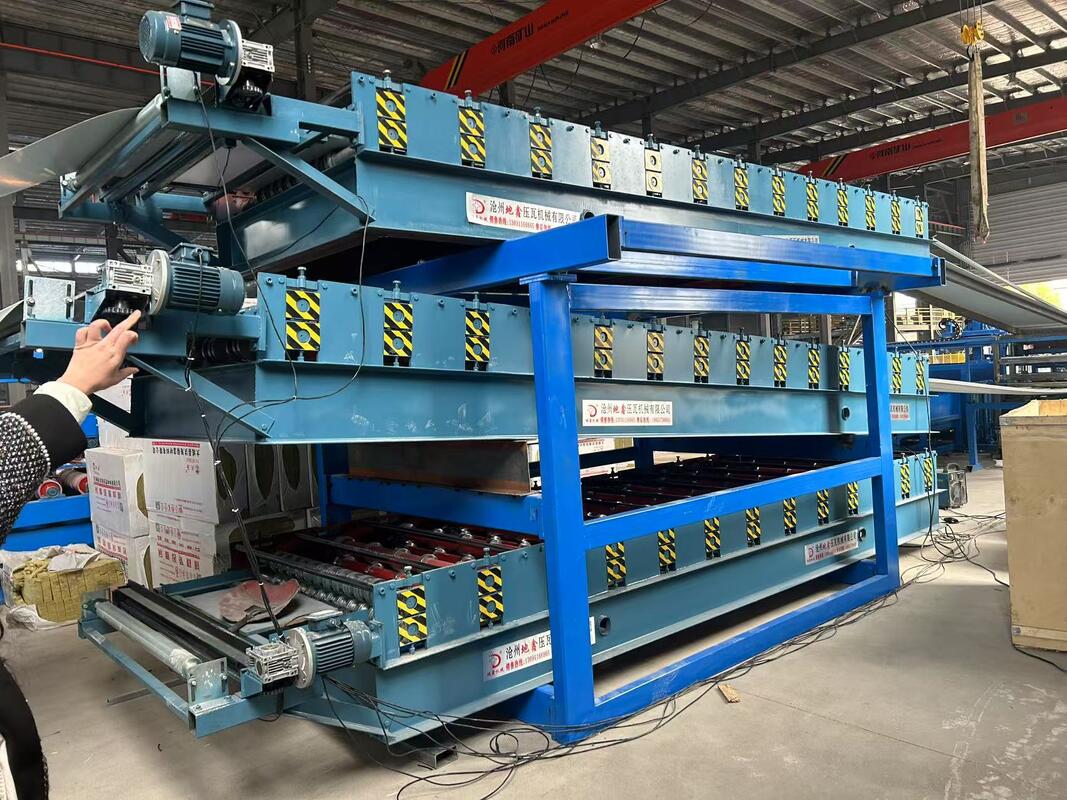

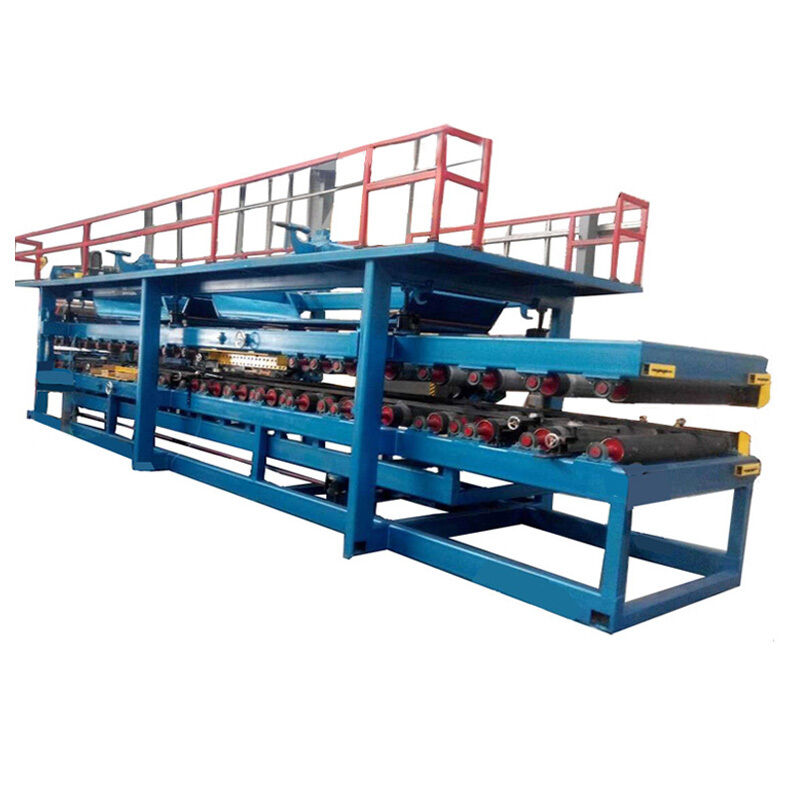

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

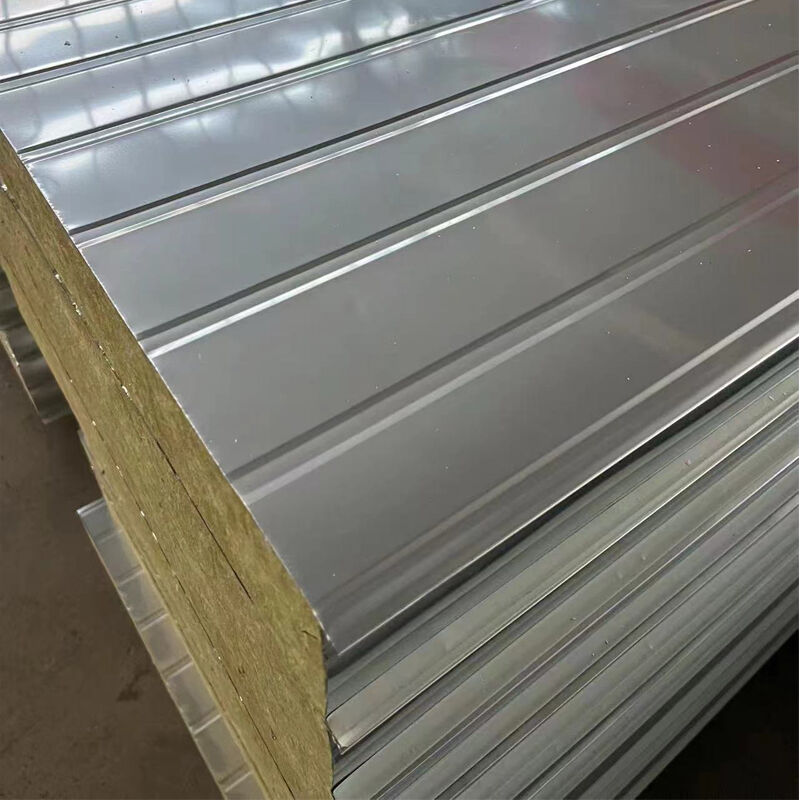

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
